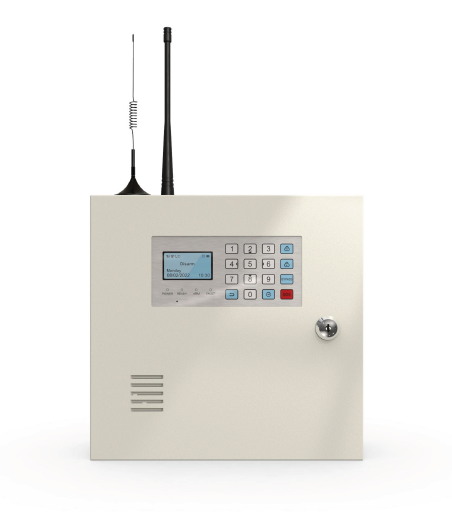

HY-518C

* 4*4 keypad and dot matrix LCD display. * 8+8 wired zones and 32 wireless zones are shared with zone number. Support 4 wired keyboards. 3 detectors for each wireless zone, 96 wireless detectors maximum can be enrolled. * 8 remote controllers maximum can be enrolled. 8 remote controllers’ operation authority is separately controlled by 8 user passwords’ operation authority. * 8 groups of alarm phone maximum can be set. It can give an alarm through PSTN wired network voice and Contact ID. * CID/SIA protocols available and CMS supported can transmission by GPRS/LAN Networks. * Supprted remote upgrade the firmware. * Thorough re-dial mechanism makes sure the reliability of alarm report when communication is busy or fails. * It has Built-in siren in panel and supports a wired siren and wireless siren function. * Support 20s user-defined recordings. Alarm host will playback the recordings when voice alarming. * Support preventing false alarm function. The real alarm will happen if zone triggered times reaches preset times within effective time. * Support arming/disarming/monitoring/propaganda/programing by phone on off site. * AC and battery power status can be reported to user, optional on/off. * Both AC 220v and 12V/7AH storage battery supply power for panel. * A group of normal open/closed alarm relay output interface. Various alarm events will drive relay to output.And two octuple relay modules can be connected maximum. Each relay can be set as followed event output or followed zone output. * Name of zone 01-16 can be freely modified. CID/SIA+ CMS -10°C~ +50°C Humidity:≤70% 250-450 Meters (Open Area) Power 850/900/1800/1900MHz GSM Working Frequency AC 220V±15% Working Environment Assit Output Current Wireless Range Protocol/Monitoring <350mA * Android and IOS APP available. Parameters:

Size	Battery	Power	Built-in siren	Wireless Frequency	GSM Working Frequency
264x260x78 mm (L * W * T)	12V/7Ah	AC 220V±15%	>90dB	433MHz	850/900/1800/1900MHz
Siren Output Current	Built-in siren	Working Environment	Assit Output Current	Wireless Range	Protocol/Monitoring
<350mA	>90dB (within 1m)	-10°C~ +50°C Humidity:≤70%	<350mA	250-450 Meters (Open Area)	CID/SIA+ CMS

Standard Kit: 8 Sets/Carton (46.5*42.5*37.5 cm)
