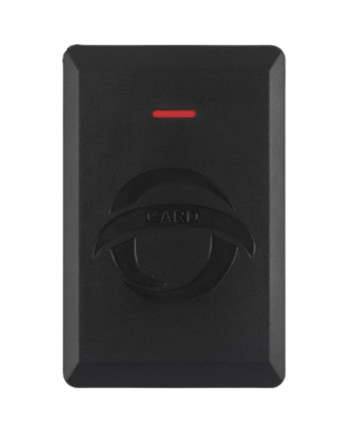

OEC-R1H-M

Features
Supports MIFARE I & MIFARE LITE IC cards.
0 to 3cm reading distance.
Less than 200ms response time within the effective reading distance.
Wiegand output.
Built-in blue/green LED and buzzer for alarm indication.
Indoor/outdoor installation.
Low operating current, single DC power supply.
Stable, sensitive and responsive.

Parameter
Parameter Description
Reading distance 0 to 3cm
Card support MIFARE I & MIFARE LITE
Response time ≤0.2s
Terminal distance ≤5m
Power supply Operating voltage: DC10.8 to 13.8V, operating current: 50 to 70mA
Operating environment Temperature: -10°C to +65°C, humidity: 10% to 90%
Dimensions 115 × 75 × 17 mm (L*W*H)
Interface 1 Wiegand output (Wiegand26/34)
Operating frequency 13.56MHz
