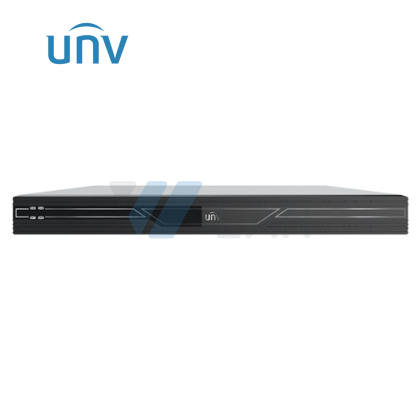

VMS-B180-A

VMS-B180-A is an integrated video surveillance platform for small and medium sized applications. It can connect and manage devices such as IPC, NVR,decoder, network keyboard, access controller, alarm controller. VMS-B180-A is easy to deploy, stable and scalable, and it is widely applicable in LAN-based applications such as residential areas, buildings, campuses, hotels, retail stores, and WAN-based applications such as networked chain stores.

О товаре

Item VMS-B180-A
Management Video 250 devices, 500 channels
Human/vehicle Can receive 100 vehicle or face images per second. Note: The number of devices supported depends on the number of images sent from the devices per second. For example, if each device sends 1 image per second, then the server can connect 100 devices. If each device sends 5 images per second, then the server can connect 20 devices.
Decoding Video H.265, H.264
Resolution 12MP/ 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080P/ 960P/ 720P/ 960H/ D1/ 2CIF/ CIF/ QCIF
Output (local client) Independent output to HDMI and VGA HDMI supports 4K resolution
Audio G.711A, G.711μ
Input Bandwidth 512Mbps
Output Bandwidth 384Mbps
User Management 50 online users
Device Management IPC, NVR, face recognition terminal, decoder, network keyboard, smart devices, alarm controller, access controller, and cloud devices.
Play Control 1 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 13 / 16 / 17 / 25 / 32 / 36 / 64 window display Corridor format Up to 3 auxiliary monitors
Playback Play NVR recordings 16-ch synchronous playback Speed: -256, -128, -64, -32, -16, -8, -4, -2, -1, 1/4, 1/2, 1, 2, 4, 8, 16, 32, 64, 128, 256
Data Info Alarm Records 200,000
Operation logs 200,000
Face capture records 3 million
Face alarm records 3 million
Vehicle pass-through records 3 million
Structured motor vehicle, non-motor vehicle and pedestrian records 3 million
Access control entry/exit records 3 million
External Interface Network 4 × 10M/100M/1000M Base-T adaptive Ethernet interfaces
USB 4 × USB3.0
Serial 1 × RS232 (RJ45), 1 × RS485 (RJ45)
Alarm input/output 24 alarm inputs, 8 alarm outputs
Power output 12V DC
Power 100-240V AC, with power switch
Others Power consumption ≤ 40W
Operating temperature -10°C to 55°C (14°F to 131°F)
Operating humidity 10%-90% (noncondensing)
Weight ≤ 4.1 Kg (without HDD)
Dimensions (D×W×H) Height: 1U 400mm x 346mm x 48mm(17.3"×13.6"×1.9")
