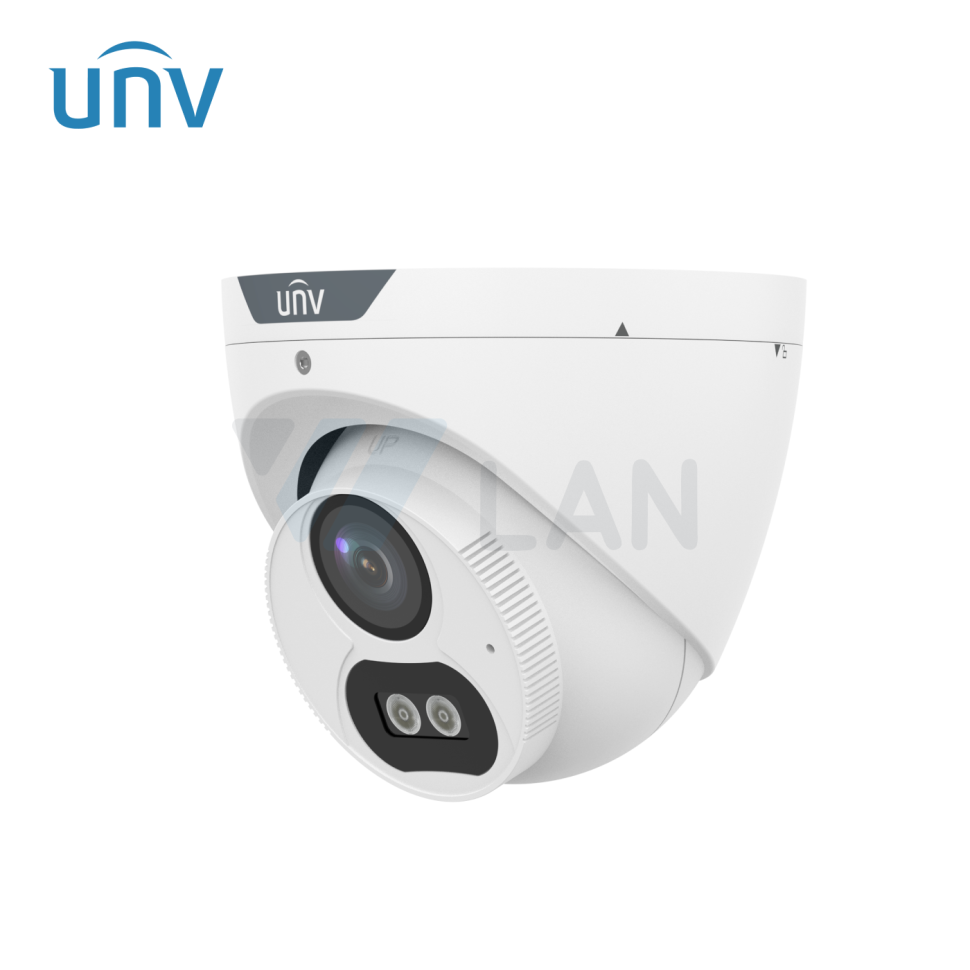

UAC-T125-AF40M-W

Analog-Dome, 5MP ColorHunter, IR20m Mic • 5MP high quality imaging • TVI/AHD/CVI/CVBS • Supports white light illumination, 24/7 color images • Supports 180° horizontal flip, 180° vertical flip • OSD configuration menu, easy to operate • IP67 waterproof and dustproof design, high reliability • OSD configuration menu in 11 languages • Built-in microphone for high quality audio transmission via coaxial cables • Metal front face and housing • 3-Axis

О товаре

UAC-T125-AF28M-W UAC-T125-AF40M-W
Camera
Max Resolution 5 MP
Sensor Size 1/2.7" CMOS
Min. Illumination 0.005 lux (F1.4, AGC ON) 0 lux (white light on)
Lens
Focus 2.8 mm 4.0 mm
Lens Mount M12
Angle of View (H) 111.5° 89.6°
Angle of View (V) 58.9° 48.3°
Angle of View (D) 134.8° 106.4°
Illuminator
Illuminator Number Two white-light illuminators
Illumination Distance 40m
Lifetime ≥ 60000 hours
Video
Resolution 5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V)
Frame Rate TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVBS: PAL, NTSC
Shutter Time PAL: 1/25s-1/50000s， NTSC: 1/30s-1/50000s
Exposure Mode Four modes: Global (default), BLC, HLC, DWDR
Day/Night 24/7 color images
Digital Noise Reduction 2D
White Balance Two modes: Auto (default), Manual
WDR DWDR
Flip Supports 180°horizontal flip, 180°vertical flip
Digital Defog N/A
Audio
Built-in Mic Support
Camera Audio TVI: 5MP@20fps, 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps
Interface
Power Interface 5.5 mm Power Interface
Video Output BNC, supports TVI/AHD/CVI/CVBS
Operating Environment
Temperature -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉)
Humidity ≤ 95% RH (non-condensing)
Surge Protection 4 KV for power, 4 KV for video output interfaces
Ingress Protection IP67
General
Power DC 12 V ± 25%
Power Consumption MAX 3.28W
Mount Wall Mount, Pole Mount, Corner Mount, Pendant Mount
Dimensions Φ111mm*96mm (diameter*height)
Material Metal + Plastic
Weight 356g(0.79lb)
