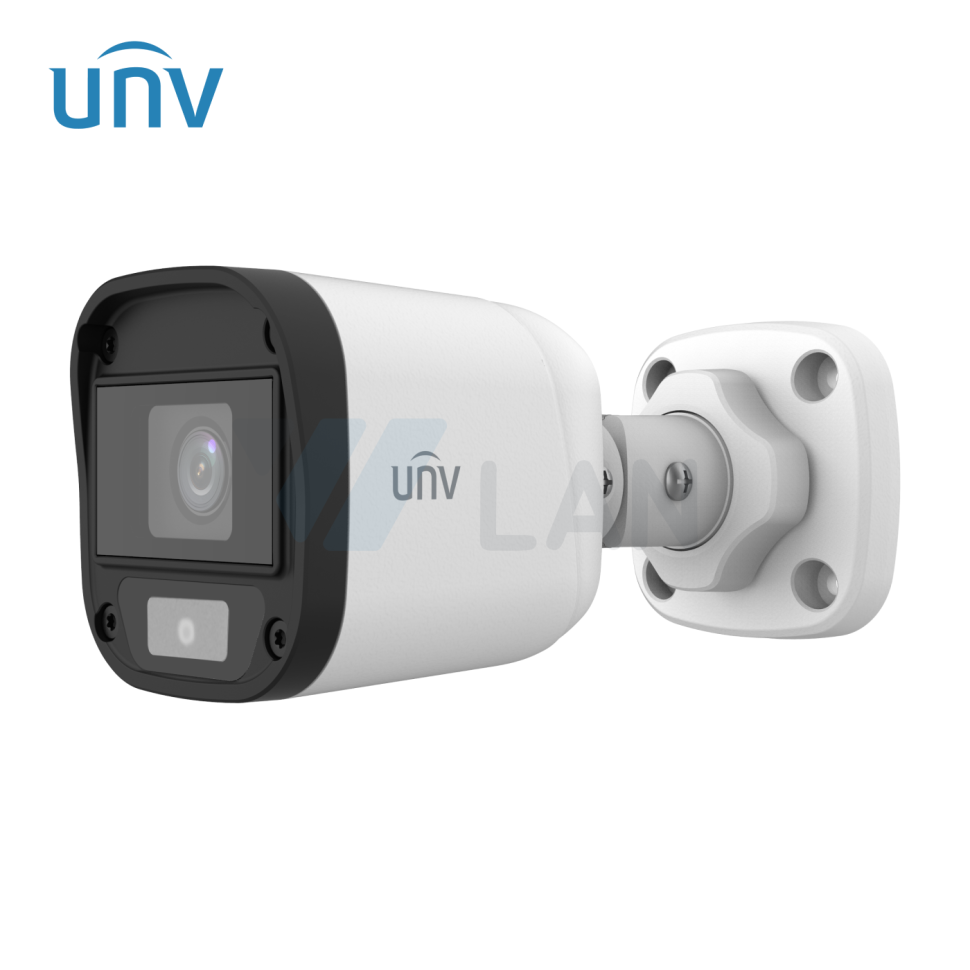

UAC-B115-F28-W

5MP ColorHunter Fixed Warm Light Bullet Analog Camera
• 5MP high quality image • TVI/AHD/CVI/CVBS • Supports white light illumination, 24/7 color images • Supports 180° horizontal flip, 180° vertical flip • OSD configuration menu, easy to operate • IP67 waterproof and dustproof design, high reliability • OSD configuration menu in 11 languages

О товаре

UAC-B115-F28-W UAC-B115-F40-W
Camera
Max Resolution 5 MP
Sensor Size 1/2.7" CMOS
Min. Illumination 0.01 lux (F1.6, AGC ON) 0 lux (white light on)
Lens
Focus 2.8 mm 4.0 mm
Lens Mount M12
Angle of View (H) 110.0° 90.0°
Angle of View (V) 57.0° 48.0°
Angle of View (D) 130.0° 109.1°
Illuminator
Illuminator Number One white-light illuminator
Illumination Distance 20m
Lifetime ≥ 60000 hours
Video
Resolution 5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V)
Frame Rate TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVBS: PAL, NTSC
Shutter Time PAL: 1/25s-1/50000s， NTSC: 1/30s-1/50000s
Exposure Mode Four modes: Global (default), BLC, HLC, DWDR
Day/Night 24/7 color images
Digital Noise Reduction 2D
White Balance Two modes: Auto (default), Manual
WDR DWDR
Flip Supports 180°horizontal flip, 180°vertical flip
Interface
Power Interface 5.5 mm Power Interface
Video Output BNC, supports TVI/AHD/CVI/CVBS
Operating Environment
Temperature -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉)
Humidity ≤ 95% RH (non-condensing)
Surge Protection 4 KV for power, 4 KV for video output interfaces
General
Power DC 12 V ± 25%
Power Consumption MAX 2.4W
Mount Corner Mount, Pole Mount
Dimensions 142mm*63mm*65mm (L*W*H)
Material Graphene + Plastic
Weight 145g(0.32lb)
OSD Menu Language 11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish
Certification
EMC CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B)
Safety CE-LVD (EN 62368-1)
Environment CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)
Protection IP67 (IEC 60529)

Характеристики

Категории: Analog camera
