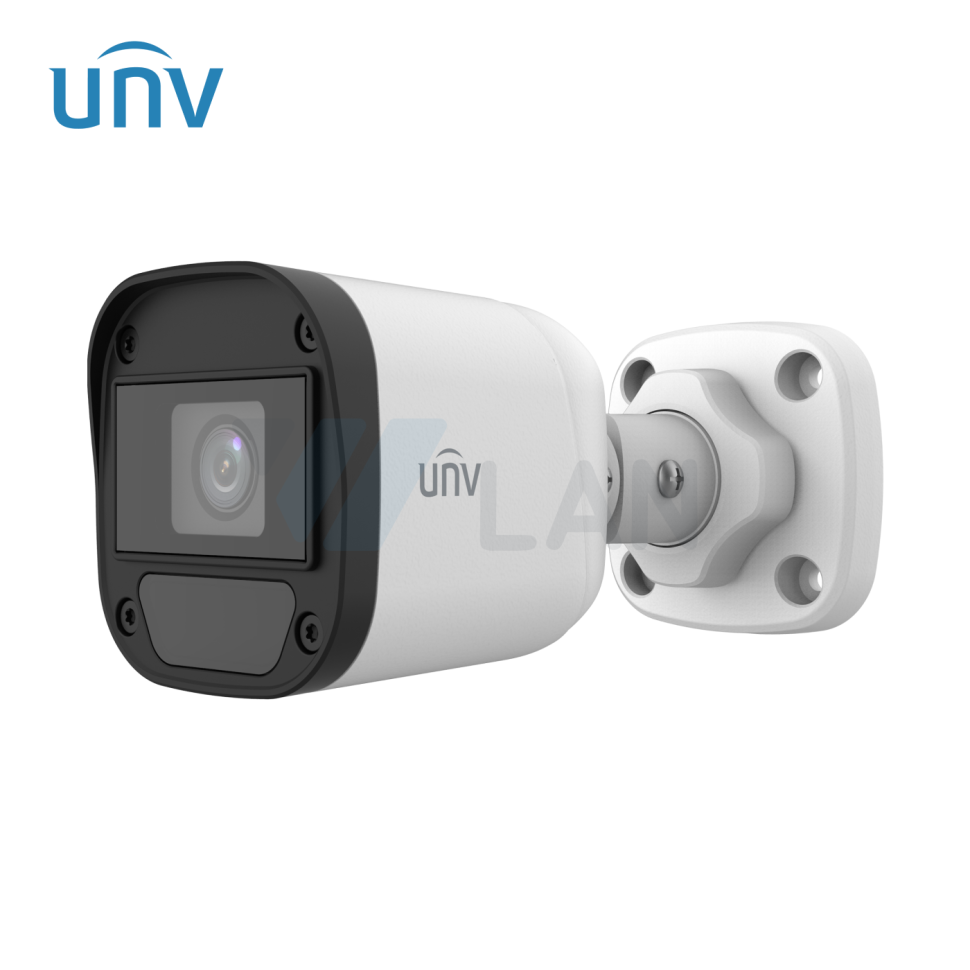

UAC-B112-F40

2MP Fixed IR Bullet Analog Camera
• 2MP high quality image • TVI/AHD/CVI/CVBS • IR-cut filter with auto switch (ICR) • Supports 180° horizontal flip, 180° vertical flip • OSD configuration menu, easy to operate • IP67 waterproof and dustproof design, high reliability • OSD configuration menu in 11 languages

О товаре

UAC-B112-F28 UAC-B112-F40
Camera
Max Resolution 2 MP
Sensor Size 1/3.0" CMOS
Min. Illumination 0.02 lux (F2.0, AGC ON) 0 lux (IR on)
Lens
Focus 2.8 mm 4.0 mm
Lens Mount M12
Angle of View (H) 90.5° 80.2°
Angle of View (V) 49.6° 40.7°
Angle of View (D) 109.5° 90.5°
Illuminator
Illuminator Number One IR illuminator
Illumination Distance 20m
Lifetime ≥ 60000 hours
Video
Resolution 1080P: 1920(H)×1080(V) 720P: 1280(H) ×720(V)
Frame Rate TVI/AHD/CVI: 1080P@25fps(default), 1080P@30fps; 720P@25fps, 720P@30fps CVBS: PAL, NTSC
Shutter Time PAL: 1/25s-1/50000s， NTSC: 1/30s-1/50000s
Exposure Mode Four modes: Global (default), BLC, HLC, DWDR
Day/Night Three modes: Auto (default), Day, Night
Digital Noise Reduction 2D
White Balance Two modes: Auto (default), Manual
WDR DWDR
Smart IR Support
Flip Supports 180°horizontal flip, 180°vertical flip
Interface
Power Interface 5.5 mm Power Interface
Video Output BNC, supports TVI/AHD/CVI/CVBS
Operating Environment
Temperature -30°C to 60°C (-22°F to 140°F)
Humidity ≤ 95% RH (non-condensing)
Surge Protection 4 KV for power, 4 KV for video output interfaces
General
Power DC 12 V ± 25%
Power Consumption MAX 2.88W
Mount Corner Mount, Pole Mount
Dimensions 142mm*63mm*65mm (L*W*H)
Material Plastic
Weight 135g(0.30lb)
OSD Menu Language 11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish
Certification
EMC CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B)
Safety CE-LVD (EN 62368-1)
Environment CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)
Protection IP67 (IEC 60529)
