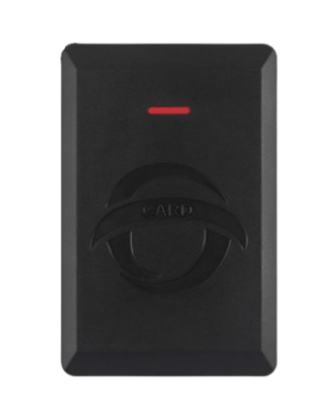

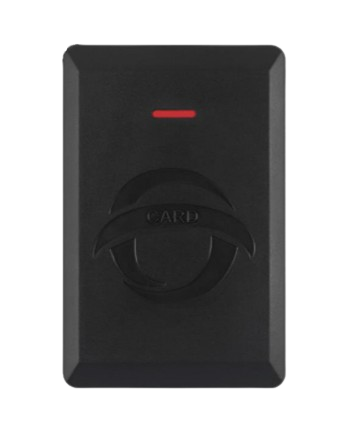

OEC-R1H-M

Features Supports MIFARE I & MIFARE LITE IC cards. 0 to 3cm reading distance. Less than 200ms response time within the effective reading distance. Wiegand output. Built-in blue/green LED and buzzer for alarm indication. Indoor/outdoor installation. Low operating current, single DC power supply. Stable, sensitive and responsive.   Parameter Parameter Description Reading distance 0 to 3cm Card support MIFARE I & MIFARE LITE Response time ≤0.2s Terminal distance ≤5m Power supply Operating voltage: DC10.8 to 13.8V, operating current: 50 to 70mA Operating environment Temperature: -10°C to +65°C, humidity: 10% to 90% Dimensions 115 × 75 × 17 mm (L*W*H) Interface 1 Wiegand output (Wiegand26/34) Operating frequency 13.56MHz
