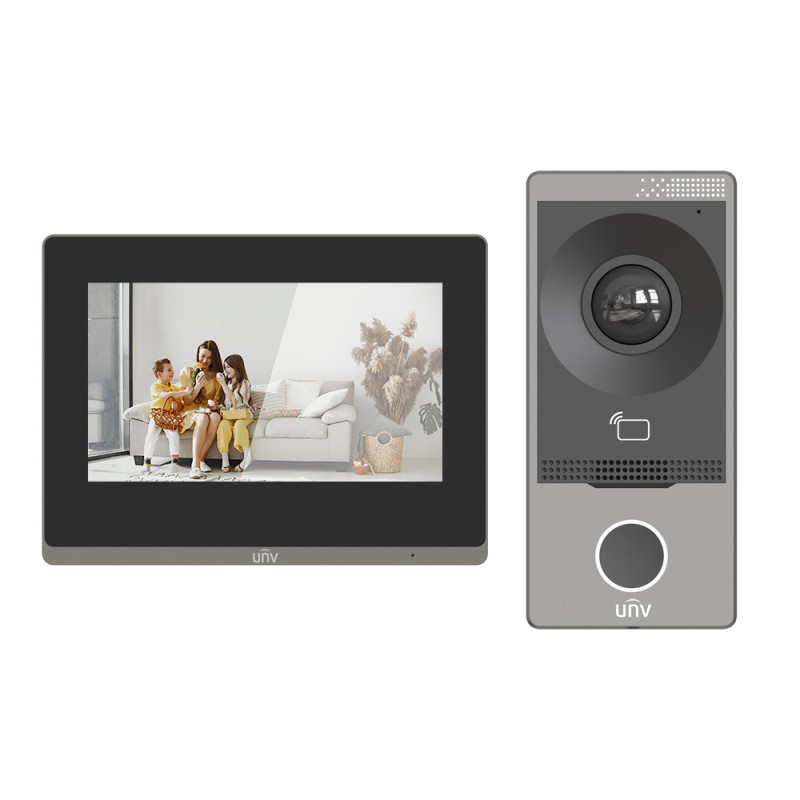

KIT/201S/372S

home doorbell with 7 monitor 32GB card, WiFi, IC card reader, door lock interface *2, IO input *4, LAN10/100

О товаре

Model KIT/201S/372S
Kit dimensions (L×W×H) 268mm*213mm*180mm
Kit weight 1.855kg
Model OEU-201S-HMK-W
Power supply DC12V ±25%, PoE power supply
Card capacity 10000
Operating system Linux
Illuminator IR light (adaptive)
WDR Support
FOV Horizontal: 124.3° Vertical: 67.5° Diagonal: 147.2°
Power consumption < 10W
Volume adjustment Support
Audio quality Noise reduction, echo cancellation, auto gain control
Audio input Built-in mic
Audio output Built-in speaker
Protocol Uniview private protocol
Audio compression format PCM, G711, MP3
Audio compression bit rate 128kbps
Button Call button
Ingress protection IP65 (Apply waterproof glue to the gap between the device and the wall. See the corresponding quick guide for details.) IK08
Weight 0.267kg
Mount method Wall mount, flush mount
Interface Power supply*1, network interface*1, RS485*1, door lock interface*2, IO input*4
Communication mode 100Mbps network interface, supports IEEE802.3af; Wi-Fi
Dimensions (L×H×W) 79mm*171mm*34mm
Operating environment - 30°C to 60°C, 10% to 90% RH noncondensing, outdoor
Model OEI-372S-H-W
Power supply DC12V ±25%, PoE power supply
Screen resolution 1024 x 600
Display screen 7-inch ultra-thin TFT LCD touch screen
Operating system Linux
Audio quality Noise reduction, echo cancellation, auto gain control
Audio input Built-in mic
Audio output Built-in speaker
Audio compression format MP3, G711
Audio compression bit rate 128kbps
Protocol Uniview private protocol
TF card 1 x 32G TF card, capable of storing 100 live video snapshots, 200 call records and call snapshots.
Power consumption < 10W
Weight 0.377kg
Interface Power supply*1, network interface*1, RS485*1, IO output*2, IO input*8, TF card slot*1
Communication mode 100Mbps network interface, supports IEEE802.3af; Wi-Fi
Dimensions (L×H×W) 193.2mm*143.4mm*25mm
Operating environment - 10°C to 55°C, 10% to 90% RH noncondensing, indoor
